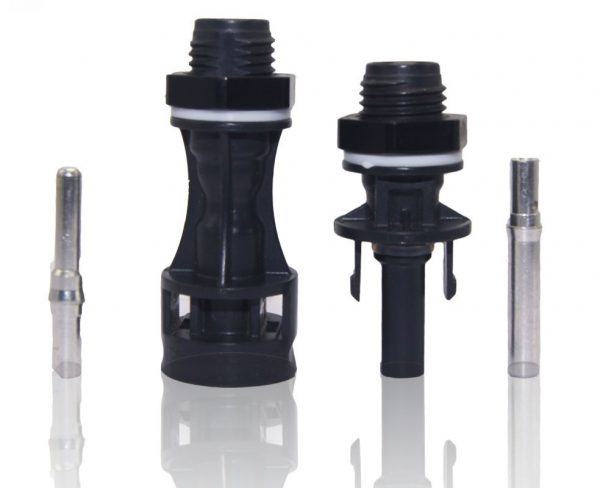

MC4 M/F IP67 Panel Mount Connector Pair

R49.95

Out of stock

Continue Shopping
SKU: SECONWSPVPC Categories: ,

Description

1500V MC4 Solar Connector
1.Simple on-site processing.
2.Accommodating PV cable with different insulation diameters.
3.Mating safety provided by keyed housings.
4.Multiple plugging and unplugging cycles .
5.High current carrying capacity.
6.Protection class IP67 suitable for outdoor harsh environments
7.Voltage up to 1500V
Used for 1500V Solar Power System

Item
 SOLAR CONNECTOR
Model Number
WSPVPC
Rated Current
30A(2.5-6mm2),60A(10-16mm2)
Test Voltage
1500VDC
Overvoltage Type/Pollution Degree
6000V(50Hz, 1min)
Contact Resistance Of Plug Connector
CAT III /2
Contact Resistance Of Plug Connector
ImΩ
Contact Material
Copper, Tin-plated
Insulation Material
PPO
Degree Of Protection
IP2X/IP67
Flame Class
UL94-VO
Safety Class
II
Suitable Cable
OD 4.5-8.5(2.5-6.0mm2)
Insertion Force/Withdrawal Force
≤ 50N/ ≥ 50N
Connecting System
Crimp connection
Temperature Range
-40℃ ~ +125℃

Brand

Solar Electronic
