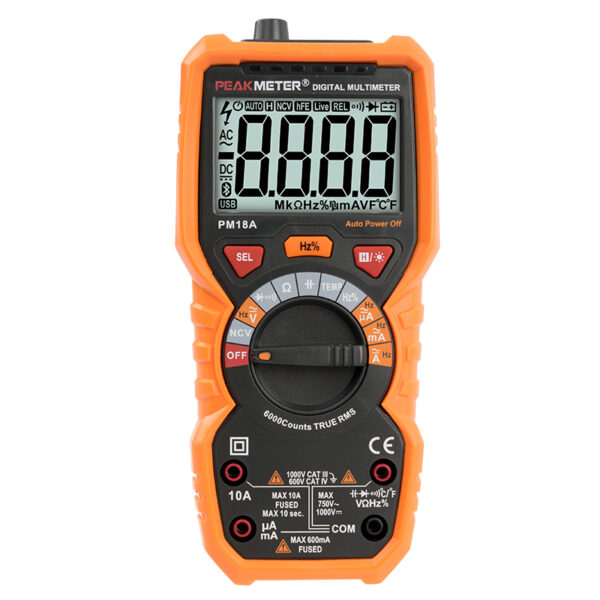

Multimeter True RMS PM18

R995.00

9 in stock

Continue Shopping
SKU: SEMULTIPM18 Category:

Description

FEATURE
Display 6000 counts
ACV/ACA TRMS
ACV(bandwidth) 1kHz
℃/℉
Hz 10MHz
GENERAL
Power Supply 4×1.5V AAA
Size 190mm×89mm×50mm
Weight 380g
Category EN61010-1,EN61010-2-033                                                               EN61326,CATⅢ 1000V/CAT  600V



SPECIFICATION RANGE ACCURACY
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+3)
AC Voltage 6V/60V ±(0.8%+3)
600V/750V ±(1%+10)
DC Current 60uA/600uA/6mA/60mA/600mA/ ±(0.8%+3)
10A ±(1.2%+3)
AC Current 60uA/600uA/6mA/60mA/600mA/ ±(1.0%+3)
10A ±(1.5%+3)
Ω 600/6k/60k/600k/6M ±(0.8%+3)
60MΩ ±(1.2%+30)
Capacitance(C) 6nF ±(4.0%+30)
60nF/600nF/6uF/60uF/600uF6mF ±(4.0%+30)
100mF ±(5.0%+3)
Frequency 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz ±(1.0%+3)
Duty 5%~95% ±(2.0%+3)
℃/℉ -20℃~1000℃/-4℉~1832℉ ±(1.0%+3)
  FEATURE
Counts 6000counts
ACV/ACA TRMS
ACV(bandwidth) 1kHz
℃℉
Hz 10MHz
Duty 5%~95%
Ω 60MΩ
Capacitance 100mF
Continuity √(Sound and LED Alarm)
Diode Test
Low Battey Indication
Worklight √(high,medium and low)Sound and LED Alarm
NCV
Auto Power Off
  GENERAL
Power supply 4×1.5V AA batteries
Weight Approx.580g
Size 204mm×93mm×57mm
Safety Rating EN61010-1,EN61010-2-033,                                       EN61326,CAT.III 1000V

Brand

Solar Electronic
