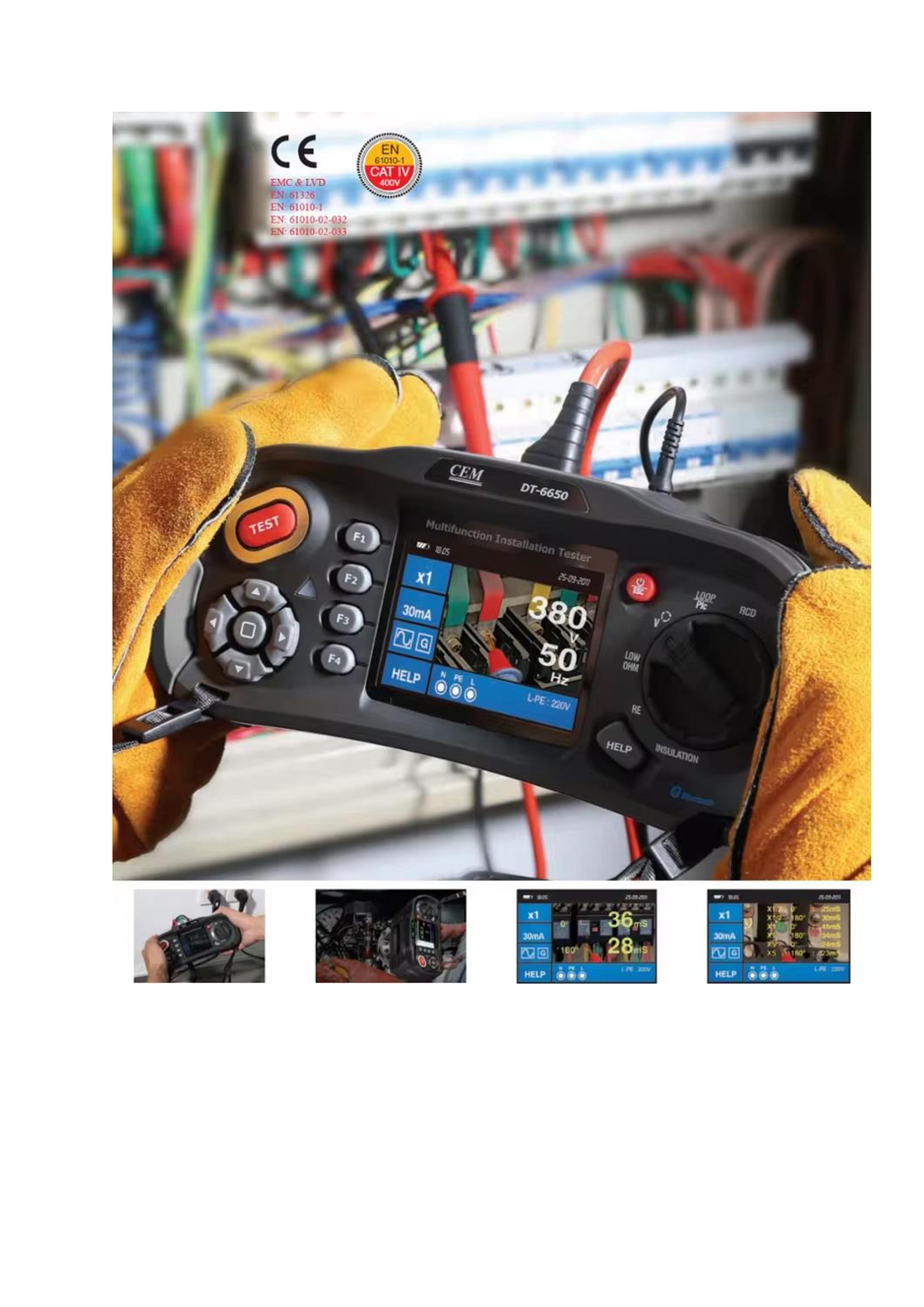

Description
| Specifications | |||||
| Insulation | |||||
| Terminal Voltage | Range | Max Resolution | Accuracy | Test Current | Short circuit current |
| 125V (0% ~ +10) | 0.125~4000MΩ | 0.001MΩ | ±(2%+10) | 1mA@load 125kΩ | ≤1mA |
| 250V (0% ~ +10) | 0.250~4000MΩ | 0.001MΩ | ±(2%+10) | 1mA@load 250kΩ | ≤1mA |
| 500V (0% ~ +10) | 0.500~4000MΩ | 0.001MΩ | ±(2%+10) | 1mA@load 500kΩ | ≤1mA |
| 1000V (0% ~ +10) | 1.000~4000MΩ | 0.001MΩ | ±(3%+10) | 1mA@load 1MΩ | ≤1mA |
| Low OHM | |||||
| Range | Resolution | Accuracy | Max. open Circuit Voltage | Overload Protection | |
| 4.000Ω | 0.001Ω | ±(1.5%+30) | 5.8V | 250Vrms | |
| 40.00Ω | 0.01Ω | ±(1.5%+3) | |||
| 400.0Ω | 0.1Ω | ||||
| Continuity Beeper | |||||
| Range | Resolution | Operation Resistance | Max. open Circuit Voltage | Overload Protection | |
| Continuity | 0.01Ω | Resistance≤35Ω | 5.0V±1VDC | 250Vrms | |
| Short circuit current | ≥200mA | ||||
| LOOP Resistance | |||||
| L-PE (Hi-Amp) | |||||
| Range (Ω) | Max. Resolution (Ω) | Accuracy | |||
| 0.00~999 | 0.01 | ±(4% of reading+6 digits) | |||
| L-PE(No Trip): Measuring Current:15mA / Range of the Voltage Used: 195V a.c.~260V a.c.(56,60Hz) | |||||
| Range (Ω) | Resolution (Ω) | Accuracy | |||
| 0.00~999 | 0.01 | ±(5% of reading+6 digits) | |||
| L-N: Measuring Current:2.0A / Range of the Voltage Used:195V a.c.~260V a.c.(56,60Hz) | |||||
| Range (Ω) | Max. Resolution (Ω) | Accuracy | |||
| 0.00~999 | 0.01 | ±(4% of reading+4 digits) | |||
| RCD Testing | |||||
| Test current | Accuracy | ||||
| x1/2, x1, x2, x5 | 1.5%~ -9% | ||||
| Voltage and Frequency | |||||
| Measurement Range (V)/ AC-DC | Resolution | Accuracy | |||
| 80-500V/(45-400Hz) | 1V | ±(2% of reading+2 digits) | |||
Accessories: Test leads, 8 x1.5V“AAA” batteries, USB cable and Software, gift box with carrying case.
